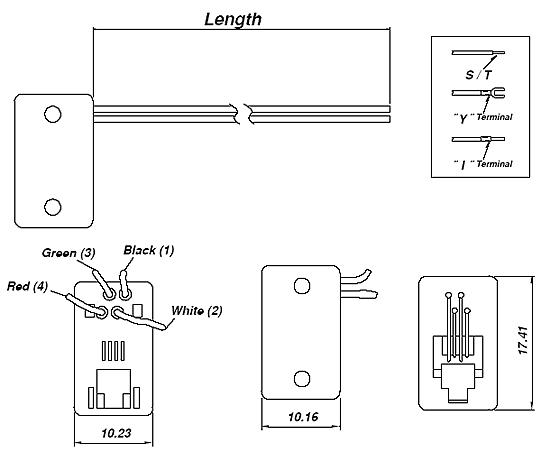

616EN
616 Series

SPECIFICATION:
 1. Electrical Char.
 Insulation Resistance: 500M-Ohm Min.
 Contact Resistance: 20milli-Ohm Max.
 Rating Current: 1.5A Max.
 Delectric Voltage: 1,000 RMS 60 Sec. Min.

 2.Physical Char.
 Housing: ABS Resin (UL 94V-0)
 Contact Wires: 0.45mm Dia. phosphor bronze
                         gold plating over nickel
 Temperature Range: -25 + 85℃
 Durability: 500 Mating cycles Min.
 Wires: UL-1061 26AWG.
