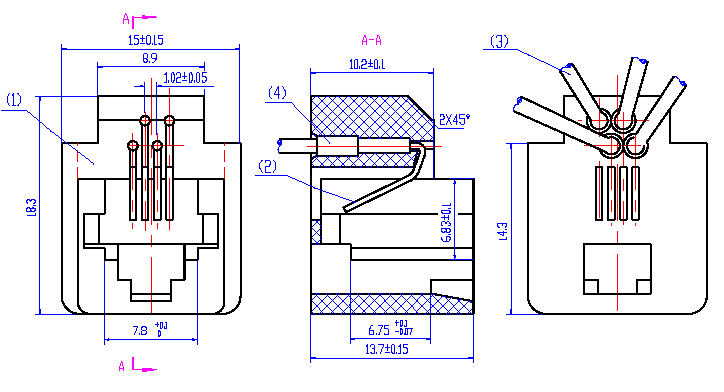

616K
616 Series

Specification
ELECTRICAL

CURRENT RATING:1.5AMPS

VOLTAGE RATING:125VAC

INSULATION RESISTANCE:100MEGOHMS MINI

WITHSTAND VOLTAGE: AC 1000V RMS 50Hz or 60Hz 1 MIN

CONTACT RESISTANCE:20MILLMHOS MINI

MECHANICAL

MATING FORCE:2 WIRE LEAD..350g 4 WIRE LEAD..500g 6 WIRE

                     LEAD..750g 8 WIRE LEAD 900g

RETENTION STRENGTH:7.7Kg BETWEEN JACK AND PLUG

CRIMP TENSILE STRENGTH:2.27Kg

DURABILITY:200MATING CYCLES MINI

MATERIAL

HOUSING: STANDARD  ABS  RESIN(UL94V-0)

CONTACT WIRE:0.46mm DIAMETER PHOSPHOR BRONZE

                     OPTIONAL GOLD PLATING OVER NICKEL

GOLD PLATING:□3u  INCH,□6u  INCH,□15u  INCH,□30u

                    INCH,□50u  INCH.

WIRE STYLES:UL  1061  26  AWG  STRANDS
